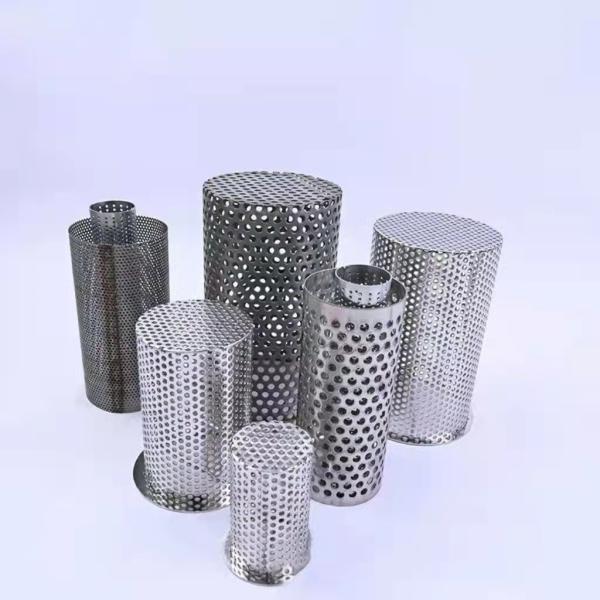

    304 Stainless Steel Filter Cartridge High Efficiency Round Hole Deep Processing

    Ask Lasest Price
    Brand Name : Chang Feng
    Model Number : 9009-03-08
    Certification : ISO9001
    Price : >=10 Sets $72.00
    Payment Terms : L/C, T/T
    Supply Ability : 500 Set/Sets per Month
    Delivery Time : 10-15 work days 1 - 100 Set
    • Product Details
    • Company Profile

    304 Stainless Steel Filter Cartridge High Efficiency Round Hole Deep Processing

    304 High Efficiency Round Hole Deep Processing Filter Cartridge Stainless Steel Filter Element

    1. Product introduction


    Filter element is a professional term of filtration and purification function. In order to purify the resources of raw fluid and a simple device for resource separation, now the filter element is mainly used in oil filtration, air filtration, water filtration and other filtration industries. The filter element can separate solid particles in liquid or gas, or fully contact different material components to speed up the reaction time, which can protect the normal operation of the equipment or the cleanness of the air. When the fluid enters the filter element with a certain specification filter screen, its impurities are blocked, and the clean fluid flows out through the filter element. The liquid filter element makes the liquid (including oil, water, etc.) clean to the state required by production and life, that is, to make the liquid reach a certain cleanliness.

    2. Parameter table


    Absolute Filter RatingBubble Piont PressureAverage Air PermeabilityThichnessWeightPorosityDirt Holding Capacity
    (渭)(Pa)(l/dm2/min)(mm)(g/m2)(%)(mg/cm2)
    31230090.35975656.4
    57600340.34600785.47
    75045570.27600726.47
    1037001000.32600777.56
    1524701750.37600807.92
    2018502550.497508112.44
    2514803200.6110507919.38
    3012354550.6310507923.07
    409255800.6612007725.96
    6063010000.77508733.97
    CF9009-02-00FILTER(PLEATED MATERIAL)FIBERGLASS
    CF9009-02-00FILTER RATINGMICRON
    CF9009-02-00END CAPSGALVANIZED STEEL SHEET
    CF9009-02-00INNER FILTER CORE/ INNER FILTER SKELETONGALVANI ZED STEEL SHEET
    CF9009-02-00WORKING PRESSURE
    CF9009-02-00SEAL/ O-RING

    3. Product characteristics


    1.The quality and performance can be guaranteed as original elements.
    2.Temperature Range -4°F~212°F
    3.Seals: nitrile seals, fluorocarbon seals for corrosive fluids.
    4.Collapse pressure rating 21bar-210bar (Hydraulic Liquid Filtration)
    5.Filtering precision 3, 5, 10,20 and 50 micron.
    6.Filter Medium: glass fiber, filter paper, stainless steel sinter fiber and stainless wire mes
    7.Fluid Compatibility Compatible with all petroleum oils,water glycols, oil/water emulsions, high water base fluids,and synthetic fluids compatible with Fluoro Rubber or EPR seals.

    hydraulic filter, stainless steel filter cartridge.


    4. Production process


    The types of skeleton are divided into: Inner Skeleton, outer skeleton and middle skeleton according to the use; stainless steel skeleton, cold plate skeleton, aluminum plate skeleton and plastic skeleton according to the material; round hole, square hole, diamond hole and rectangular hole according to the hole. The utility model is used to support and protect the corrugations from impact or crush or destroy the corrugations under the action of external forces. The corrugations must be both beautiful and strong.


    5. Installation method


    The stainless steel filter shall be installed by-pass to facilitate the overhaul and maintenance of the equipment without shutdown.
