    L30m Corrosion Resistant Woven Wire 20 Mesh Plain Weave Stainless Steel

    Ask Lasest Price
    Brand Name : Chang Feng
    Model Number : 9009-54-5
    Certification : ISO9001
    Price : Negotiable
    Payment Terms : L/C, T/T
    Supply Ability : 5000 Kilogram/Kilograms per Week
    Delivery Time : 3-5 work days
    • Product Details
    • Company Profile

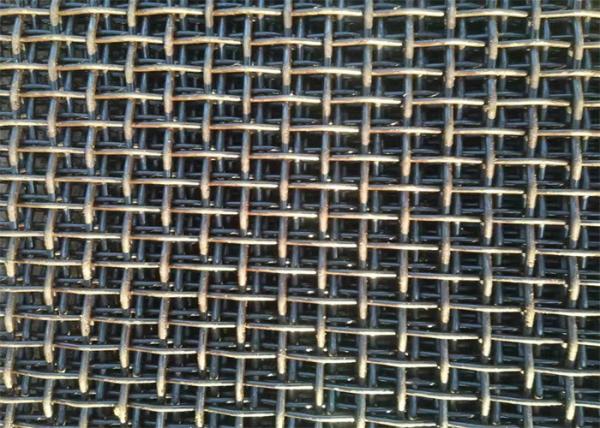

    L30m Corrosion Resistant Woven Wire 20 Mesh Plain Weave Stainless Steel

    Corrosion-Resistant Plain Weave Stainless Steel Woven Mesh Air Filter Mesh

    1. Product introduction


    Woven wire mesh, also sometimes called woven wire cloth, is made by weaving strands in an up-down or up-down method to form different patterns with different gauges. Some of the most common weave patterns include: plain/square weave, rectangular weave, plain dutch weave, twill dutch weave, inter-crimp weave, etc.


    2. Parameter table


    ThicknessStrand WidthHole SizeNote
    2mm5mm25×50mmIn Panel
    Big Hole
    2.5mm5mm30×60mm
    3mm5-10mm40×80mm
    2-3mm5-15mm50×100mm
    3mm20-30mm90×200mm
    3mm20-30mm100×250mm
    0.8mm1.5mm5×10mmIn Roll
    Small Hole
    0.3-1.5mm0.3-2.5mm(2-15)mm×(3-30)mm
    as you needas you need2×3
    as you needas you need3×4
    as you needas you need4×5
    as you needas you need4×6
    Mesh/inchWire Diameter(mm)

    Aperture

    (mm)

    Mesh/inchWire diameter(mm)

    Aperture

    (mm)

    2mesh1.8010.9060mesh0.150.273
    3mesh1.606.86670mesh0.140.223
    4mesh1.205.1580mesh0.120.198
    5mesh0.914.1790mesh0.110.172
    6mesh0.803.433100mesh0.100.154
    8mesh0.602.575120mesh0.080.132
    10mesh0.551.990140mesh0.070.111
    12mesh0.501.616150mesh0.0650.104
    14mesh0.451.362160mesh0.0650.094
    16mesh0.401.188180mesh0.0530.088
    18mesh0.351.060200mesh0.0530.074
    20mesh0.300.970250mesh0.040.061
    26mesh0.280.696300mesh0.0350.049
    30mesh0.250.596325mesh0.030.048
    40mesh0.210.425350mesh0.030.042
    50mesh0.190.318400mesh0.0250.0385

    3. Product characteristic


    1) High tension: higher tension and smoother tension than ordinary polyester mesh;
    2) Ultra-precision: the wire diameter and aperture are uniform, and the difference is very small;
    3) Low elongation: The elongation of the wire mesh under high tension is very small;
    4) High flexibility: the wire mesh will not lose its elasticity under extreme tension;
    5) High corrosion resistance: the excellent corrosion resistance of stainless steel wire exceeds that of polyester fiber;


    4. Application


    It is mostly used in coal mountain, mining, construction, aquaculture, glass factory, petroleum, hardware products, petrochemical industry, construction machinery, protective net, barbecue net, handicraft net, food machinery net, cooking utensil net, wall net, It can also be used for grading screening of solid materials, filtration of liquids and mud, etc.
