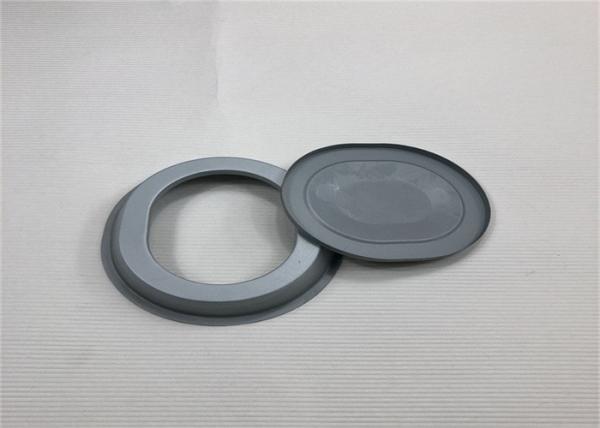

05 / 08 Thick Special Round End Cover Fingerprint Resistant Filter Cover

    Buy cheap 05 / 08 Thick Special Round End Cover Fingerprint Resistant Filter Cover from wholesalers

    Buy cheap 05 / 08 Thick Special Round End Cover Fingerprint Resistant Filter Cover from wholesalers
    • Buy cheap 05 / 08 Thick Special Round End Cover Fingerprint Resistant Filter Cover from wholesalers
    • Buy cheap 05 / 08 Thick Special Round End Cover Fingerprint Resistant Filter Cover from wholesalers

    05 / 08 Thick Special Round End Cover Fingerprint Resistant Filter Cover

    Ask Lasest Price
    Brand Name : CHANGFENG
    Model Number : 9021-07-02
    Certification : ISO9001
    Price : Negotiable
    Payment Terms : L/C, T/T
    Supply Ability : 5000 Set/Sets per Week filter end caps 5000 sets/week
    Delivery Time : 8-10 work days
    MOQ : 50 PCS
    • Product Details
    • Company Profile

    05 / 08 Thick Special Round End Cover Fingerprint Resistant Filter Cover

    05 / 08 thick special round end cover fingerprint resistant filter cover

    1. Product Description


    The end cover of the filter element mainly plays the role of sealing both ends of the filter material and supporting the filter material. The steel plate is mainly pressed into various shapes as required. The filter element is installed on the vehicle and engine, which will produce vibration during mechanical operation, and the air filter will bear great stress. The end cover can effectively improve the bearing capacity of the filter material, Generally, one side of the end cover is stamped into a groove that can place the end face of the filter material and the adhesive, and the other side is bonded with a rubber seal to seal the filter material and the channel of the filter element.


    2. Specifications


    There are parts of specifications of filter caps we made for clients before for your reference. If you need other shapes, we could make customization.

    Open Round End Cap with Tri-Bolt Holes
    InchesMillimeters
    Outer diameter12.75323.85
    Inner diameter8.5215.9
    Inner height0.5413.716
    Outer height0.512.7
    Inner rim diameter6.75171.45
    Open Round End Cap with Outer Lip
    InchesMillimeters
    Outer diameter12.75323.85
    Inner diameter8.5215.9
    Inner diameter0.62515.875
    Outer height0.3689.3472
    Lip0.3759.525
    Open Round End Cap
    InchesMillimeters
    Outer diameter12.75323.85
    Inner diameter8.5215.9
    Inner height0.512.7
    Outer Height0.512.7
    Closed Round End Cap
    InchesMillimeters
    Outer diameter12.75323.85
    Inner diameter8.375212.725
    Inner height0.512.7
    outer height0.512.7
    Closed Round End Cap with Bolt Hole
    InchesMillimeters
    Outer diameter12.75323.85
    Inner diameter8.375212.725
    Inner height0.512.7
    Outer height0.512.7
    Bolt Hole0.62515.875
    Open Round End Cap with Flange
    InchesMillimeters
    Outer diameter5.75146.05
    Inner diameter2.563.5
    Inner height0.512.7
    Outer height0.2787.0612
    Closed Round End Cap
    InchesMillimeters
    Outer diameter5.25133.35
    Inner diameter2.563.5
    Inner height0.87522.225
    Outer height0.1724.3688

    3. Packing method


    The filter cover already has a protective film to achieve good end cover protection. In particular, in the transport process, to the bottle cap one by one packaging, to prevent bottle cap scratches. The end cover is packed and bundled with braided tape. Put the end cover into the plastic bag, and finally use high-quality wooden box packaging, transport fast, easy to load and unload forklift.


    4. FAQ


    The filter end cover already has a protective film, which can achieve a good end cover protection function. Especially during transportation, the caps should be packed one by one to prevent the caps from being scratched. The end caps are packaged and bundled with a braid. Put the packaged end caps into plastic bags, and finally pack them in high-quality wooden boxes, which are fast and easy to load and unload with forklifts.

    1.Certificates:

    RoHs,UL,SGS,MSDS,DIN53438

    2.Payment terms:

    50% deposit upon getting the order,balance against the B/L copy.

    3.Delivery date:

    About 7 working days(≤500pcs), special order is negotiable to be quicker.

    4.Sample Terms:

    We can supply 1-2 small samples for tree but express cost is covered by your side.

    5.Minimum Order Quantity:

    No strict principle for standard sizes,but 50pcs for non-standard dimensions or types.

    6.Price Terms:

    EX-WORKS, FOB, CNF, CIF OR DDU is available and up to you.

    7.Lead time:

    3 Days for a 40ft container, weeks for two 40ft container.


    5. matters needing attention


    The material selection of the end cover should be consistent with the connection method of the device, otherwise it cannot be used normally if it does not match the device. End covers of different materials are used in different temperature environments.
