Air Purifier Hepa Filter Fabric Low Resistance Anti Static

    Buy cheap Air Purifier Hepa Filter Fabric Low Resistance Anti Static from wholesalers

    Buy cheap Air Purifier Hepa Filter Fabric Low Resistance Anti Static from wholesalers
    • Buy cheap Air Purifier Hepa Filter Fabric Low Resistance Anti Static from wholesalers
    • Buy cheap Air Purifier Hepa Filter Fabric Low Resistance Anti Static from wholesalers

    Air Purifier Hepa Filter Fabric Low Resistance Anti Static

    Ask Lasest Price
    Brand Name : Chang Feng
    Model Number : 9009-55-24
    Certification : ISO9001
    Price : Negotiable
    Payment Terms : L/C, T/T
    Supply Ability : 30 Ton/Tons per Quarter
    Delivery Time : 1 - 5000 Est. Time15(days)
    • Product Details
    • Company Profile

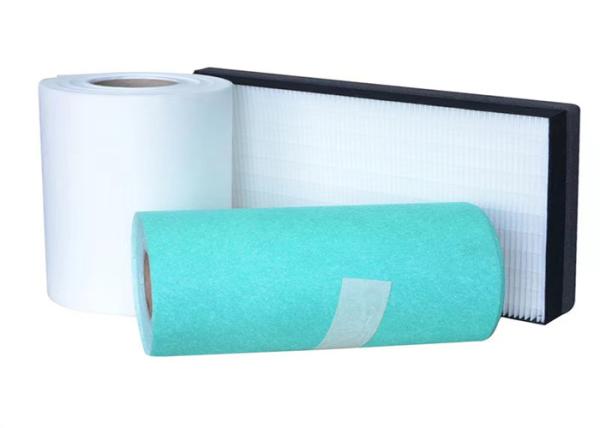

    Air Purifier Hepa Filter Fabric Low Resistance Anti Static

    Air Purifier Filter Paper With High Efficiency And Low Resistance HEPA Filter Paper


    1.Product introduction


    Filter paper can remove harmful dust, smoke, poison, etc. from gas, and separate impurity particles from liquid; it can also block bacteria and microorganisms. It can also be divided into air filter paper and liquid filter paper in terms of use. High-efficiency filter paper is made of glass fiber as the main raw material and is made by wet molding process. It has the characteristics of uniform fiber distribution, large dust holding capacity, low resistance and high strength. It is an ideal air filter material.


    2. Parameter table


    No minal sizeActual sizeThicknessProtective netRated air volumesurface air speedRated initial resistance
    (inch)(mm)(mm)(m3h)(mls)(Pa)
    WxHxDW×H×DH13H14u15u16
    2×2570×57050Double-sided protective net3670.35108115135148
    2×41170x57050Double-sided protective net7750.351o8115135148
    2×1610×3055oDouble-sided protective net20o0.35108115135148
    610×61050Double-sided protective net4230.351o8115135148
    2.5×2762x6105oDouble-sided protective net5350.35108115135148
    3x2915×61050Double-sided protective net6460.351o8115135148
    4×31170×87050Double-sided protective net12060.35108115135148
    4x41170×1170(with5oDouble-sided protective net16370.35108115135148
    ribs)
    570×57070Double-sided protective net4720.451oo11o125140
    4×21170×5707oDouble-sided protective net1oo00.451oo11o12514o
    2×1610×3057oDouble-sided protective net2580.451oo11o125140
    2×2610×6107oDouble-sided protective net5450.451oo11o12514o

    3. Application


    The use of glass fiber wool is generally used for coarse dust filtering dry spray booths in air conditioning systems, and exhaust systems in automobile spray booths to reduce environmental pollution and protect the environment. The product is made of fiberglass in a fluffy state. Therefore, it has a large dust holding capacity and a long service life, and is an excellent material for primary air filtration.


    4.Factors Affecting Filtering Effectiveness


    There are many factors affecting the efficiency of fiber filter paper, the main ones are particle diameter, fiber thickness, filtration speed and filling rate, as well as temperature, humidity, pressure, dust holding capacity, etc.


    5. company introduction

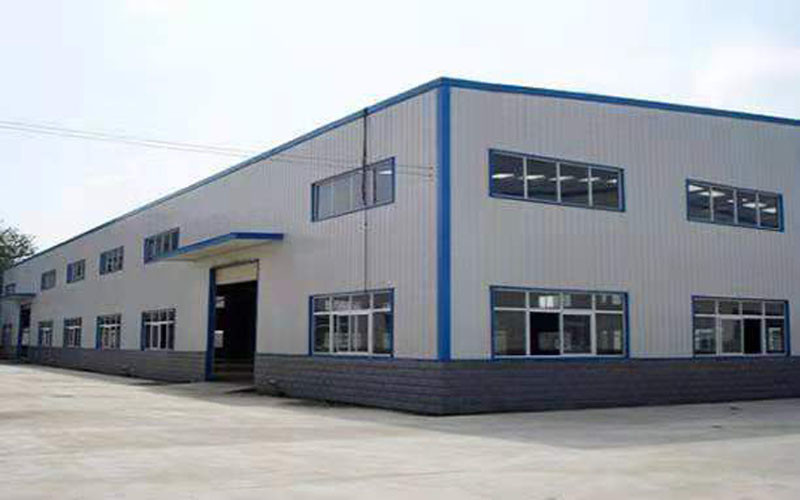

    Hebei Anping Changfeng filter material Co., Ltd. is a solid factory for 25 years. Our company is a modern enterprise which produces and sells filter core raw materials, filter equipment and screen deep processing filter industry. After 25 years of efforts, it has gradually developed and expanded, with more than 300 engineers, technicians and workers. Our factory covers an area of 30 mu. 4 large workshops of 1000 square meters, two workshops of 500 square meters, with 30 press, 12 CNC punch machines, hydraulic press and lathe and other filter equipment welding machines.
